NEWCOBOND® Brushed surface Aluminum Composite Panel From China Factory

Short Description:

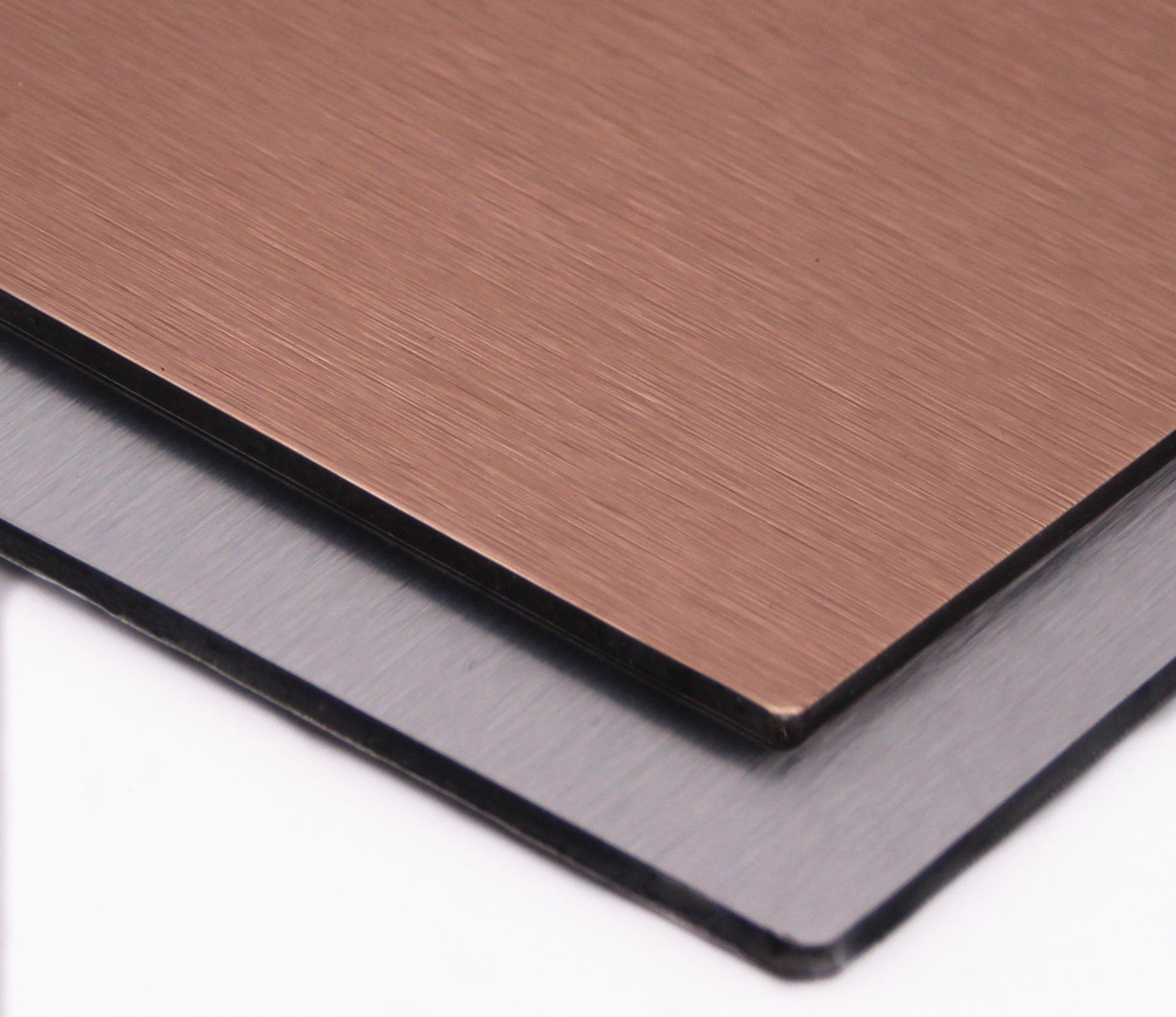

The core charm of brushed painted aluminum composite panels is concentrated on their unique paint effect. They break through the monotony of traditional flat paint, and replicate the natural texture of metal brushed wire through fine craftsmanship, combining visual layering and tactile experience, becoming a popular choice to highlight the sense of quality in architectural decoration and home design.​


Product Detail

Product Tags

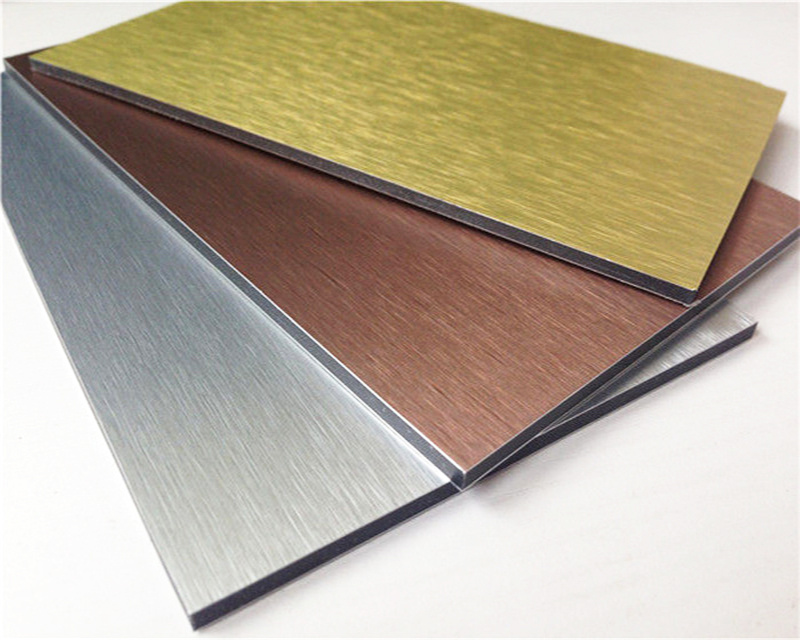

From the perspective of visual effects, the brushed paint surface presents a delicate and regular linear texture. The texture direction can be selected vertically, horizontally or obliquely according to the design needs. The lines are uniform in width and neatly arranged, which not only retains the cold texture of the metal material, but also weakens the stiffness of the metal through the wrapping of the paint surface, presenting the visual tension of "soft and hard". Under light, the paint surface will show a subtle gradient of light and dark with the change of light angle - when the light is illuminated vertically, the texture is low-key and restrained, and the overall appearance of a uniform metallic luster; when the light is oblique, the concave and convex feeling of the brushed texture is amplified, and the lines are intertwined, forming a rhythmic light and shadow flow effect, so that the surface is no longer a flat "stiff" presentation, but a dynamic visual layer.

STRUCTURE

p3

ADVANTAGES

p1

ENVIRONMENTAL FRIENDLY

NEWCOBOND used recyclable PE materials that imported from Japan and Korea, composite them with pure AA1100 aluminum, it’s totally non-toxic and friendly to environment.

p2

EASY PROCESSING

NEWCOBOND ACP has good strength and flexibility, it’s easy to transform, cut, fold,drill, curve and install them.

p3

WEATHER-RESISTANT

Surface treatment with high-grade ultraviolet-resistant polyester paint (ECCA) request, guarantee 8-10 years; if use the KYNAR 500 PVDF paint, guaranteed 15-20 years.

p4

OEM SERVICE

NEWCOBOND can supply OEM service, we can customize size and colors for clients. All RAL colors and PANTONE colors are available

DATA

Aluminum Alloy AA1100
Aluminum Skin 0.18-0.50mm
Panel Length 2440mm 3050mm 4050mm 5000mm
Panel Width 1220mm 1250mm 1500mm
Panel Thickness 4mm 5mm 6mm
Surface treatment PE / PVDF
Colors All Pantone & Ral Standard Colors
Customization of size and color Available
Item Standard Result
Coating Thickness PE≥16um 30um
Surface pencil hardness ≥HB ≥16H
Coating Flexibility ≥3T 3T
Color Difference ∆E≤2.0 ∆E<1.6
Impact Resistance 20Kg.cm impact -paint no split for panel No Split
Abrasion Resistance ≥5L/um 5L/um
Chemical Resistance 2%HCI or 2%NaOH test in 24hours-No Change No Change
Coating Adhesion ≥1grade for 10*10mm2 gridding test 1grade
Peeling Strength Average ≥5N/mm of 180oC peel off for panel with 0.21mm alu.skin 9N/mm
Bending Strength ≥100Mpa 130Mpa
Bending Elastic Modulus ≥2.0*104MPa 2.0*104MPa
Coefficient of Linear Thermal Expansion 100℃ temperature difference 2.4mm/m
Temperature Resistance -40℃ to +80℃ temperature without change of color difference and paint peel off,peeling strength average dropped≤10% Change of glossy only.No paint peel off
Hydrochloric Acid Resistance No change No change
Nitric Acid Resistance No Abnormity ΔE≤5 ΔE4.5
Oil Resistance No change No change
Solvent Resistance No base exposed No base exposed
