NEWCOBOND® Wall Cladding Glossy Color Aluminum Composite Panel Made in China

Short Description:

The surface is extremely glossy, which can reflect the surrounding sky, clouds and cityscape like a mirror, giving the building a strong sense of modernity, technology and fashion. It can instantly enhance the visual impact and recognition of buildings, and is often used to create landmark buildings and high-end commercial spaces.


Product Detail

Product Tags

The surface is extremely glossy, which can reflect the surrounding sky, clouds and cityscape like a mirror, giving the building a strong sense of modernity, technology and fashion. It can instantly enhance the visual impact and recognition of buildings, and is often used to create landmark buildings and high-end commercial spaces.

The surface is extremely smooth, making it difficult for dust and dirt to adhere. Just by being washed away by rain, the cleaning effect can be achieved, significantly reducing the high cleaning and maintenance costs in the later stage. It is particularly suitable for the exterior walls of high-rise buildings. It weighs only 14% of natural stone and 13% of glass curtain walls, greatly reducing the load on buildings and lowering structural and foundation costs. It is easy to cut, bend and groove, and can be processed into various shapes such as planes and arcs. It has high installation efficiency and low comprehensive costs.

STRUCTURE

p3

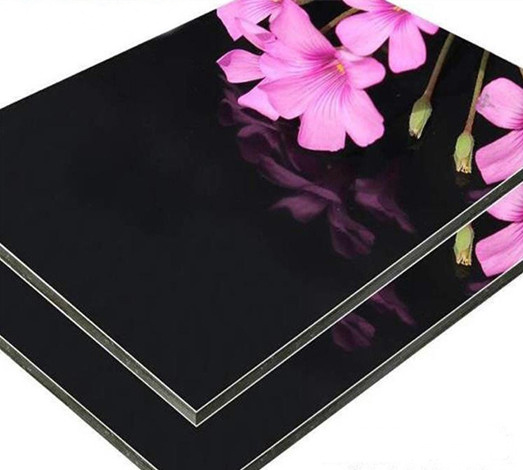

Aluminum-Panel3

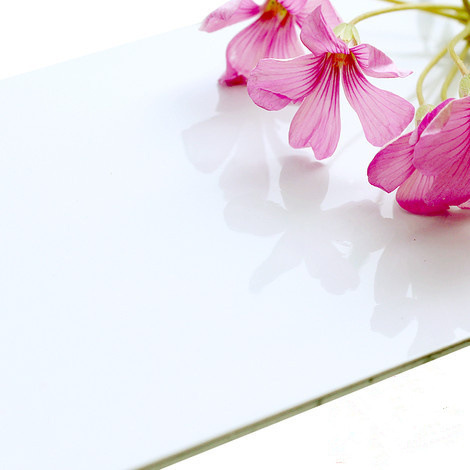

Aluminum-Panel

ADVANTAGES

p1

ENVIRONMENTAL FRIENDLY

NEWCOBOND used recyclable PE materials that imported from Japan and Korea, composite them with pure AA1100 aluminum, it’s totally non-toxic and friendly to environment.

p2

EASY PROCESSING

NEWCOBOND ACP has good strength and flexibility, it’s easy to transform, cut, fold,drill, curve and install them.

p3

WEATHER-RESISTANT

Surface treatment with high-grade ultraviolet-resistant polyester paint (ECCA) request, guarantee 8-10 years; if use the KYNAR 500 PVDF paint, guaranteed 15-20 years.

p4

OEM SERVICE

NEWCOBOND can supply OEM service, we can customize size and colors for clients. All RAL colors and PANTONE colors are available

DATA

Aluminum Alloy AA1100
Aluminum Skin 0.18-0.50mm
Panel Length 2440mm 3050mm 4050mm 5000mm
Panel Width 1220mm 1250mm 1500mm
Panel Thickness 4mm 5mm 6mm
Surface treatment PE / PVDF
Colors All Pantone & Ral Standard Colors
Customization of size and color Available
Item Standard Result
Coating Thickness PE≥16um 30um
Surface pencil hardness ≥HB ≥16H
Coating Flexibility ≥3T 3T
Color Difference ∆E≤2.0 ∆E<1.6
Impact Resistance 20Kg.cm impact -paint no split for panel No Split
Abrasion Resistance ≥5L/um 5L/um
Chemical Resistance 2%HCI or 2%NaOH test in 24hours-No Change No Change
Coating Adhesion ≥1grade for 10*10mm2 gridding test 1grade
Peeling Strength Average ≥5N/mm of 180oC peel off for panel with 0.21mm alu.skin 9N/mm
Bending Strength ≥100Mpa 130Mpa
Bending Elastic Modulus ≥2.0*104MPa 2.0*104MPa
Coefficient of Linear Thermal Expansion 100℃ temperature difference 2.4mm/m
Temperature Resistance -40℃ to +80℃ temperature without change of color difference and paint peel off,peeling strength average dropped≤10% Change of glossy only.No paint peel off
Hydrochloric Acid Resistance No change No change
Nitric Acid Resistance No Abnormity ΔE≤5 ΔE4.5
Oil Resistance No change No change
Solvent Resistance No base exposed No base exposed
