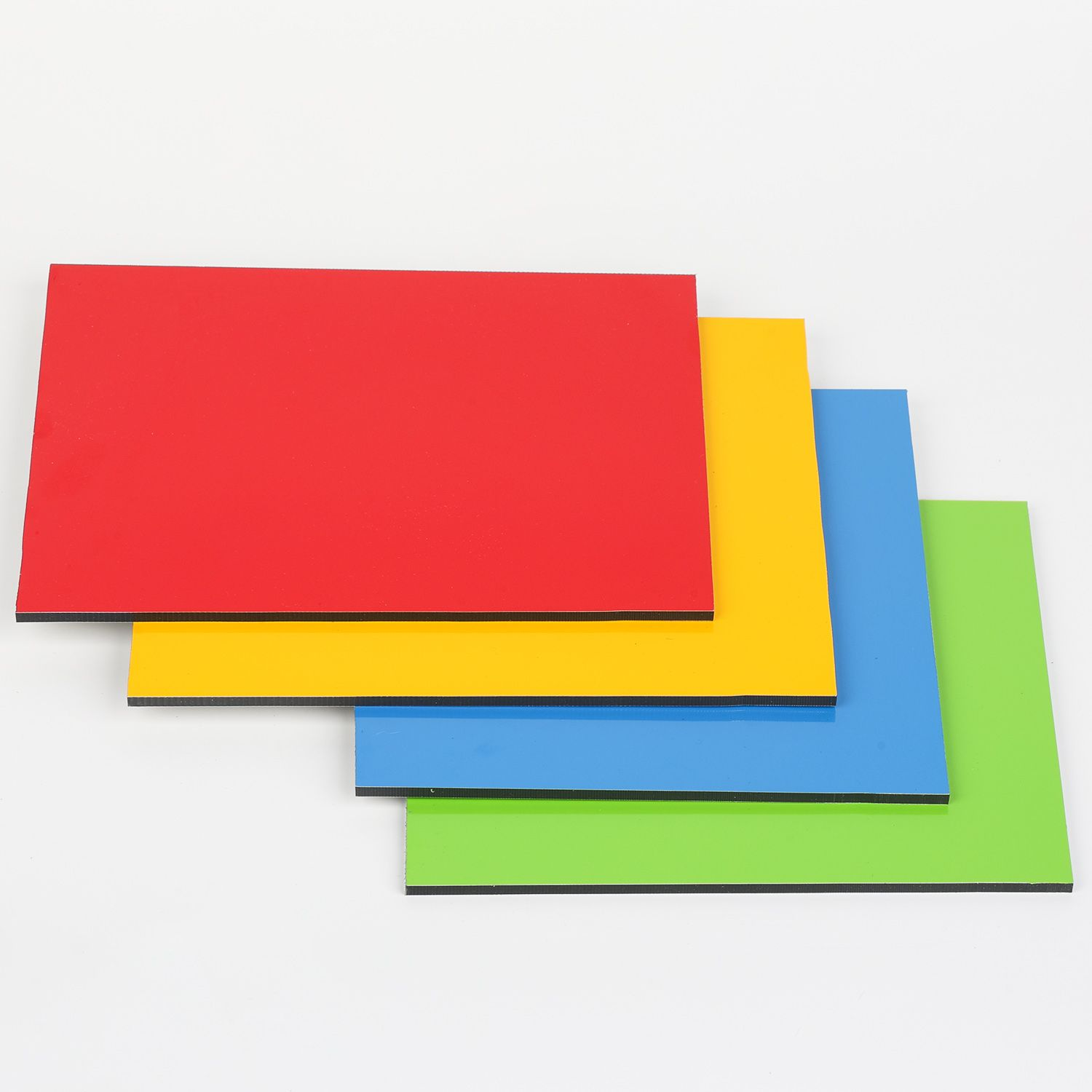

NEWCOBOND® FEVE for wall cladding Aluminum Composite Panel

Short Description:

Specially made for exterior wall cladding are NEWCOBOND FEVE ACP. They are composed of LDPE core material with aluminum foil measuring 0.3 or 0.4 mm and 0.5 mm. The FEVE color coating applied to the surface can provide exceptional weather resistance and glossy performance. They have a 20–30 year warranty and are frequently used in traffic stations, schools, hospitals, hotels, shopping centers, and homes.


Product Detail

Product Tags

Dust and dirt are unable to adhere to it because to its remarkable smoothness. The cost of subsequent costly cleaning and maintenance can be significantly reduced by simply allowing the cleaning effect to be washed away by rain. Aluminum composite sheets have a flexible polyethylene core and an aluminum front.They are perfect for settings where safety is a concern because they are incredibly robust but lightweight. Regardless of the specifications and color you choose, NEWCOBOND will provide you with a satisfactory solution for your projects. We accept OEM and customizing requirements.

STRUCTURE

p3
wall cladding Aluminum Composite Panel1
wall cladding Aluminum Composite Panel

ADVANTAGES

p1

ENVIRONMENTAL FRIENDLY

NEWCOBOND used recyclable PE materials that imported from Japan and Korea, composite them with pure AA1100 aluminum, it’s totally non-toxic and friendly to environment.

p2

EASY PROCESSING

NEWCOBOND ACP has good strength and flexibility, it’s easy to transform, cut, fold,drill, curve and install them.

p3

WEATHER-RESISTANT

Surface treatment with high-grade ultraviolet-resistant polyester paint (ECCA) request, guarantee 8-10 years; if use the KYNAR 500 PVDF paint, guaranteed 15-20 years.

p4

OEM SERVICE

NEWCOBOND can supply OEM service, we can customize size and colors for clients. All RAL colors and PANTONE colors are available

DATA

Aluminum Alloy AA1100
Aluminum Skin 0.18-0.50mm
Panel Length 2440mm 3050mm 4050mm 5000mm
Panel Width 1220mm 1250mm 1500mm
Panel Thickness 4mm 5mm 6mm
Surface treatment PEVE
Colors All Pantone & Ral Standard Colors
Customization of size and color Available
Item Standard Result
Coating Thickness PE≥16um 30um
Surface pencil hardness ≥HB ≥16H
Coating Flexibility ≥3T 3T
Color Difference ∆E≤2.0 ∆E＜1.6
Impact Resistance 20Kg.cm impact -paint no split for panel No Split
Abrasion Resistance ≥5L/um 5L/um
Chemical Resistance 2%HCI or 2%NaOH test in 24hours-No Change No Change
Coating Adhesion ≥1grade for 10*10mm2 gridding test 1grade
Peeling Strength Average ≥5N/mm of 180oC peel off for panel with 0.21mm alu.skin 9N/mm
Bending Strength ≥100Mpa 130Mpa
Bending Elastic Modulus ≥2.0*104MPa 2.0*104MPa
Coefficient of Linear Thermal Expansion 100℃ temperature difference 2.4mm/m
Temperature Resistance -40℃ to +80℃ temperature without change of color difference and paint peel off,peeling strength average dropped≤10% Change of glossy only.No paint peel off
Hydrochloric Acid Resistance No change No change
Nitric Acid Resistance No Abnormity ΔE≤5 ΔE4.5
Oil Resistance No change No change
Solvent Resistance No base exposed No base exposed
