NEWCOBOND® Mirror Face Aluminum Composite Panel

Short Description:

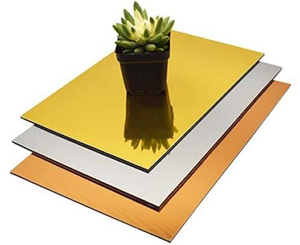

NEWCOBOND® mirror acp is an ideal decoration material for building. Our mirror series contains gold mirror,silver mirror ,copper mirror ,grey mirror,tea mirror,black mirror,rose mirror.
Mirror finish is made by anodized technology, it makes the aluminum surface as bright as mirror. Because of the fact that mirror coated panels present quite diverse options with consistent features, that is the popular choice for decoration now.
Aluminum composite sheets are aluminum faced composite sheet with flexible polyethylene core.They are extremely rigid yet lightweight and are ideal for environments where safety is a concern.

Send email to us

Product Detail

Product Tags

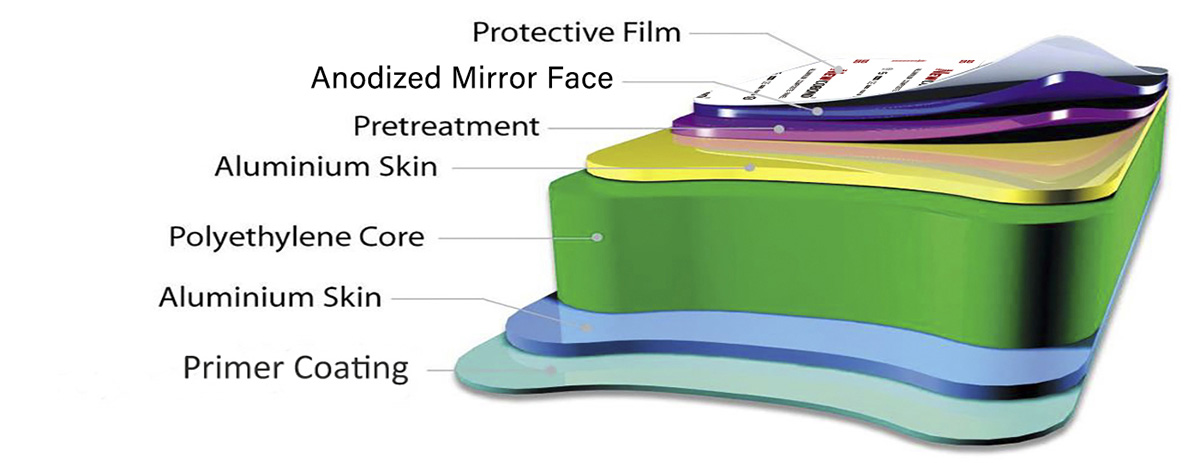

STRUCTURE

ADVANTAGES

EXCELLENT ANODIZED MIRROR FACE

We use anodization technology, this coating process makes the aluminum surface as bright as mirror.

OEM SERVICE

NEWCOBOND can supply OEM service, we can customize size and colors for clients. All RAL colors and PANTONE colors are available

ENVIRONMENTAL FRIENDLY

NEWCOBOND used recyclable PE materials that imported from Japan and Korea, composite them with pure AA1100 aluminum, it’s totally non-toxic and friendly to environment.

EASY PROCESSING

NEWCOBOND ACP has good strength and flexibility, it’s easy to transform, cut, fold,drill, curve and install them.

DATA

Aluminum Alloy	AA1100
Aluminum Skin	0.18-0.50mm
Panel Length	2440mm 3050mm 4050mm 5000mm
Panel Width	1220mm 1250mm 1500mm
Panel Thickness	4mm 5mm 6mm
Surface treatment	PE / PVDF
Colors	All Pantone & Ral Standard Colors
Customization of size and color	Available

Item	Standard	Result
Coating Thickness	PE≥16um	30um
Surface pencil hardness	≥HB	≥16H
Coating Flexibility	≥3T	3T
Color Difference	∆E≤2.0	∆E＜1.6
Impact Resistance	20Kg.cm impact -paint no split for panel	No Split
Abrasion Resistance	≥5L/um	5L/um
Chemical Resistance	2%HCI or 2%NaOH test in 24hours-No Change	No Change
Coating Adhesion	≥1grade for 10*10mm2 gridding test	1grade
Peeling Strength	Average ≥5N/mm of 180oC peel off for panel with 0.21mm alu.skin	9N/mm
Bending Strength	≥100Mpa	130Mpa
Bending Elastic Modulus	≥2.0*104MPa	2.0*104MPa
Coefficient of Linear Thermal Expansion	100℃ temperature difference	2.4mm/m
Temperature Resistance	-40℃ to +80℃ temperature without change of color difference and paint peel off,peeling strength average dropped≤10%	Change of glossy only.No paint peel off
Hydrochloric Acid Resistance	No change	No change
Nitric Acid Resistance	No Abnormity ΔE≤5	ΔE4.5
Oil Resistance	No change	No change
Solvent Resistance	No base exposed	No base exposed
